Termokaamera FALCON FQ50 HIKMICRO

3,145.00€

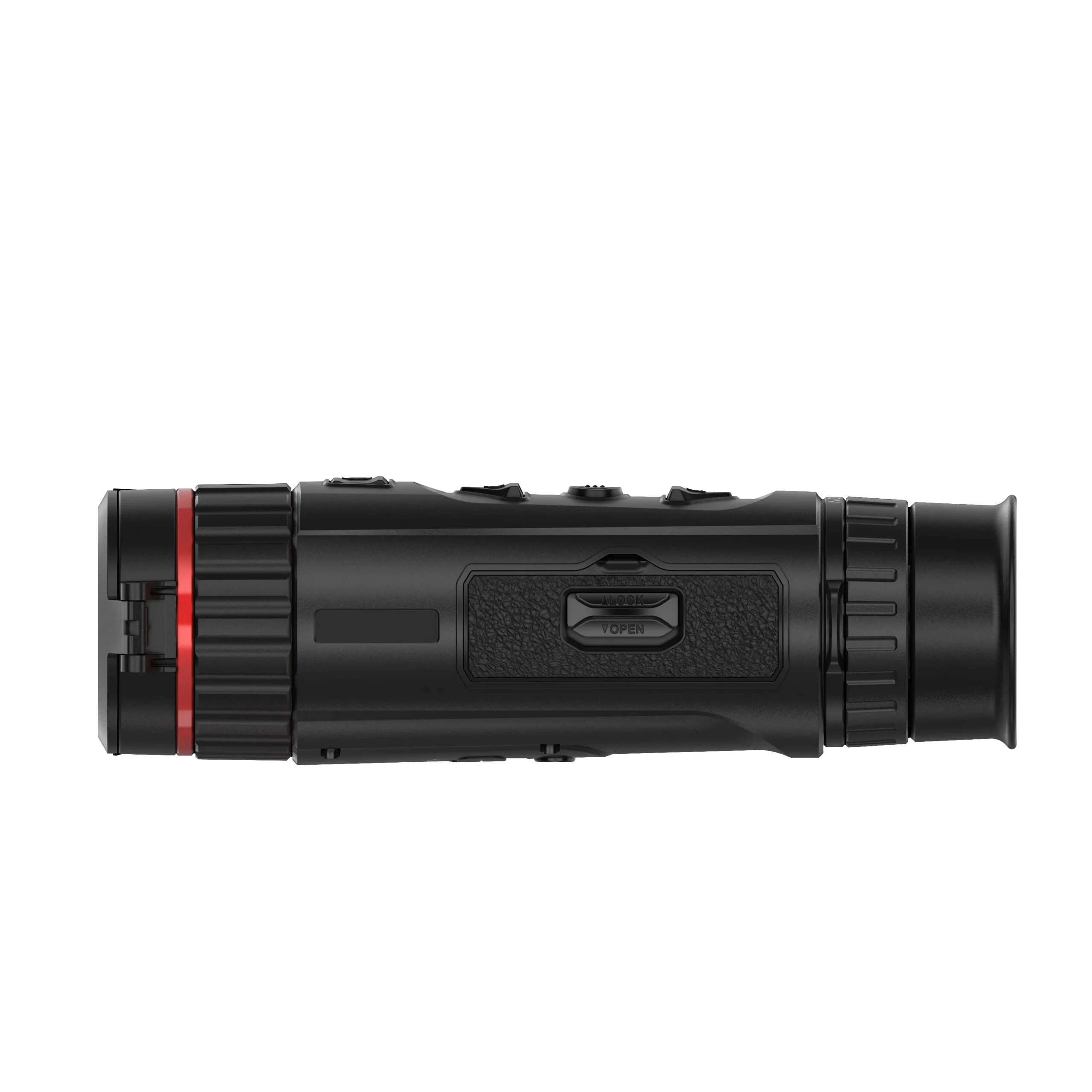

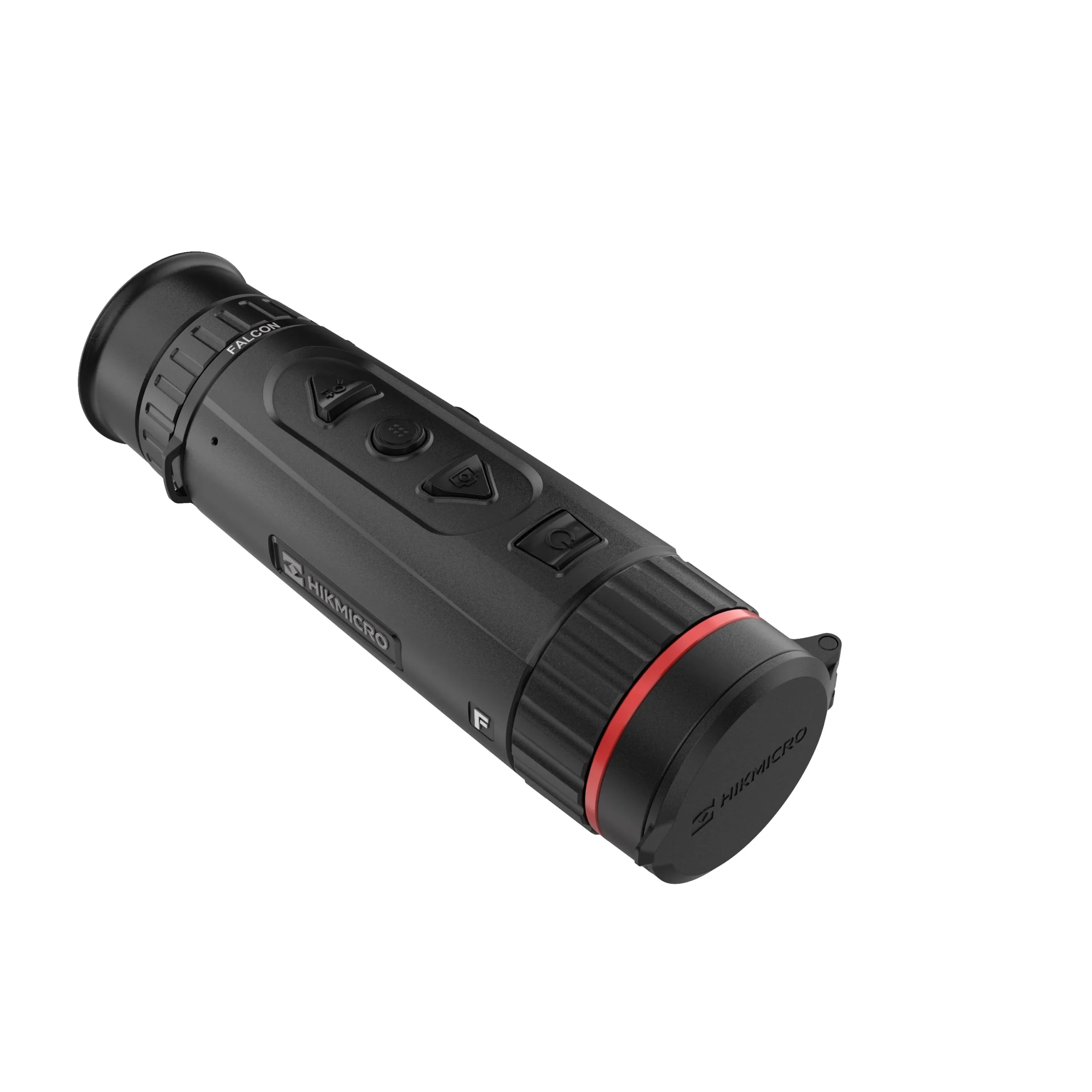

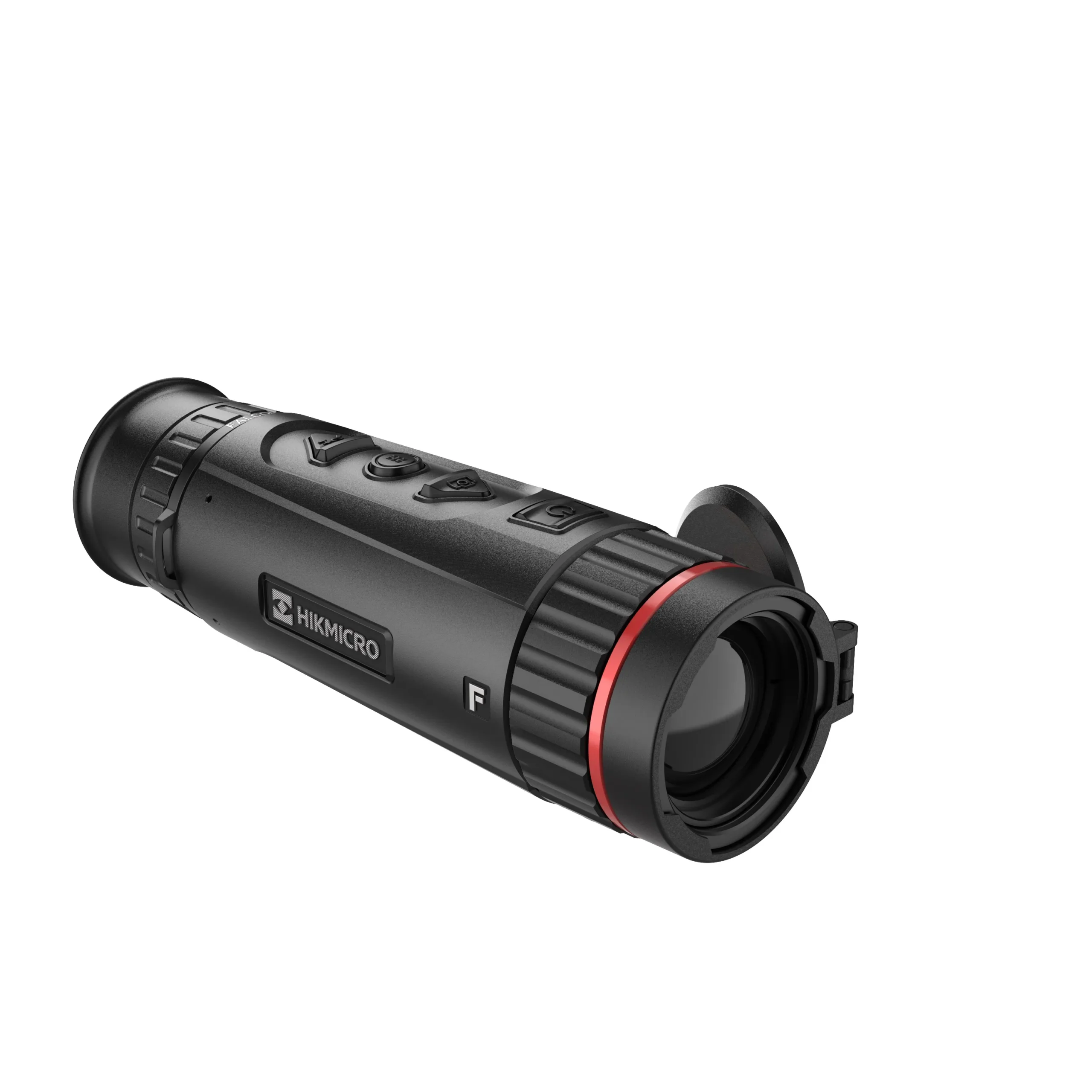

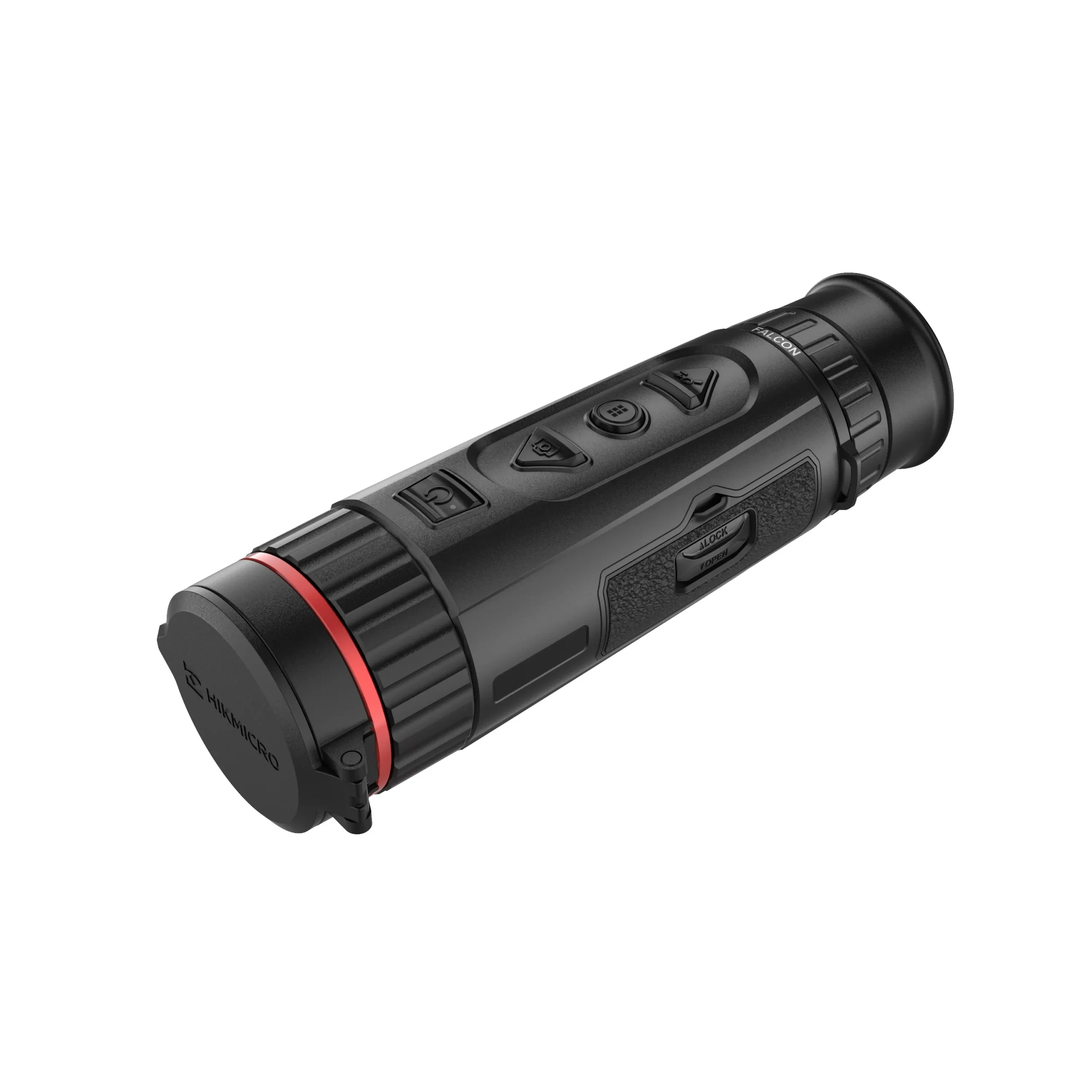

HIKMICRO FALCON FQ50 is a handheld thermal monocular camera equipped with a 640×512 infrared detector and a 1024×768 OLED display. It supports surveillance, mobile hotspot and other functions. The high-sensitivity built-in thermal detector ensures a clear view even in complete darkness. The monocular is mainly used in scenarios like search and rescue, hiking, travel and hunting, etc.



Kategooria:

Kirjeldus

  • 640×512 resolution with 12μm sensor
  • High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
  • Replaceable and rechargeable Li-ion battery
  •  Up to 5 hours of continuous operation
  •  Leading thermal imaging technology: Image Pro
  •  1024×768 resolution 0.39 inch OLED display
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 640×512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NET Less than 20 mK (@25°C), F# = 1.0
Focal Length 50 mm
Aperture F0.9
Min. Focusing Distance 5.0 m
Digital Zoom 1×, 2×, 4×, 8×
Optical Magnification 2.6
Field of View(H × V), Degrees/m @100 m 8.75° × 7°/15.3m × 12.2m
Detection Range 2600 m
Image display
Monitor 0.39 inch, OLED, 1024 × 768
Pallets Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
system
Storage Built-in memory module (64 GB)
Record Video Yes
Capture Snapshot Yes
Standby Mode Yes
Hotspot Yes
Hot Track Yes
Power Supply
Power 5V, 1.95W
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 5 hours continuous running with CVBS and hotspot function off (@25°C)
General
Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or less
Protection Level IP67
Dimension 203 mm × 78 mm × 67.8 mm (7.99″ × 3.07″ × 2.67″)
Weight 636 g (1.40 lb)
