Termokaamera GQ35L GRYPHON LRF HIKMICRO

2,854.00

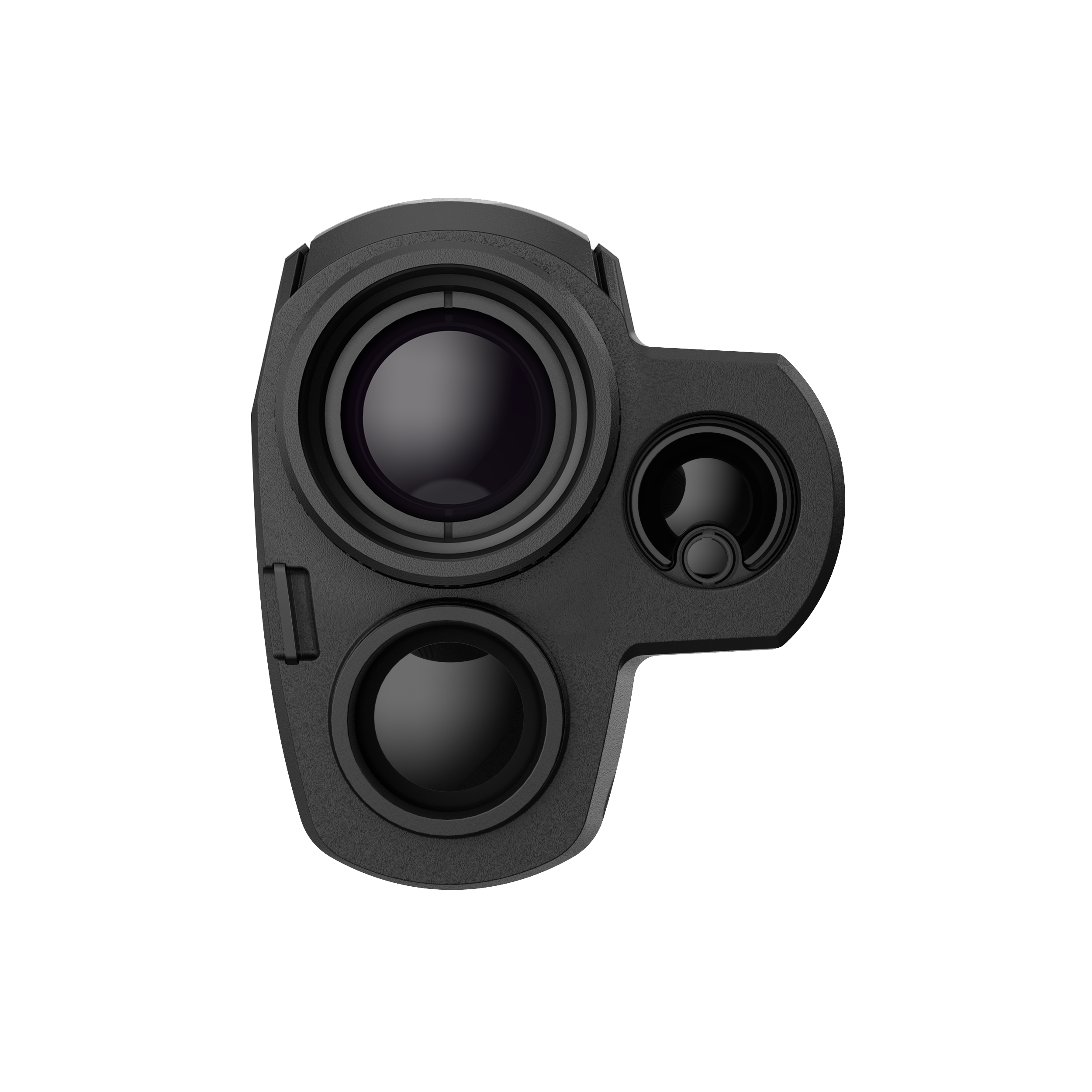

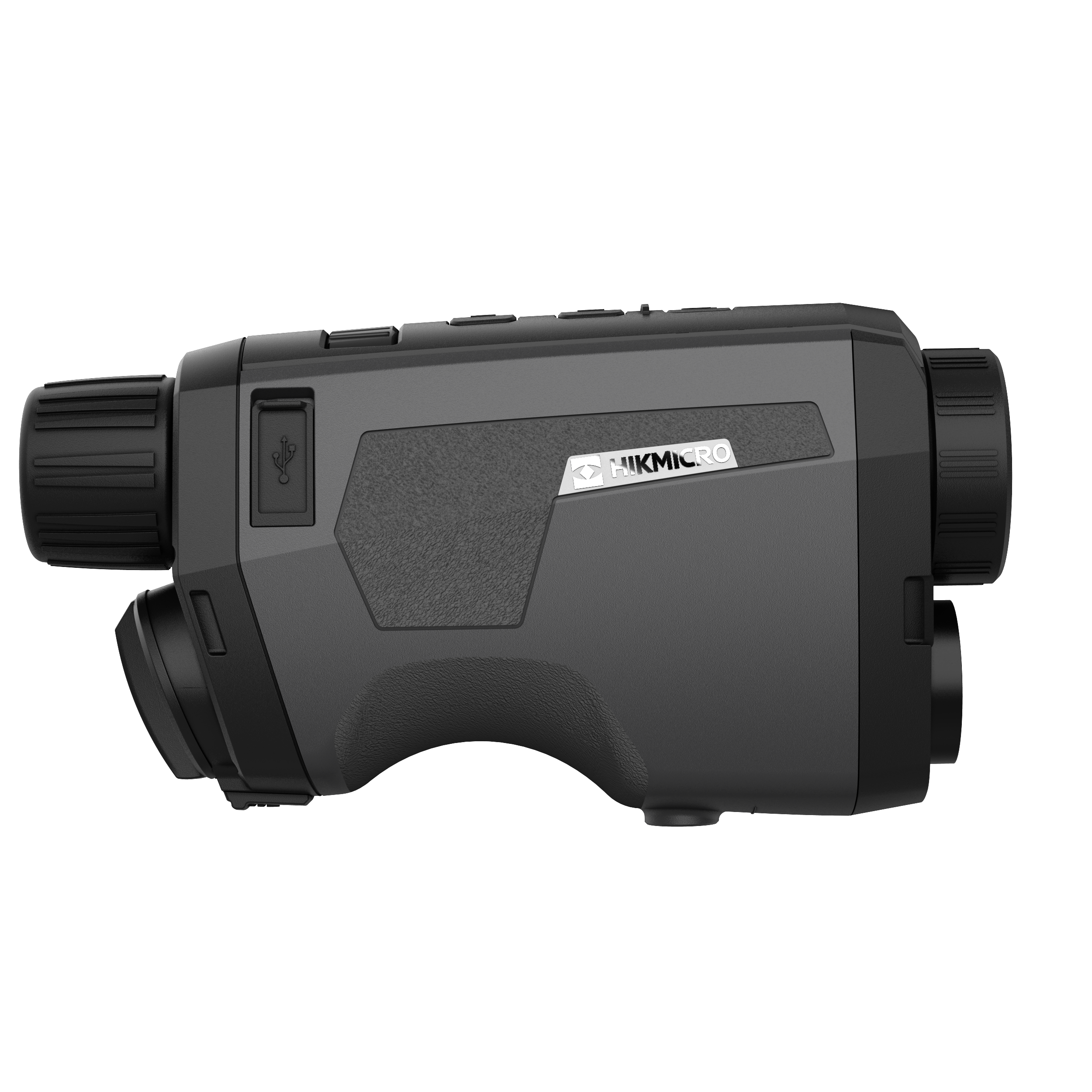

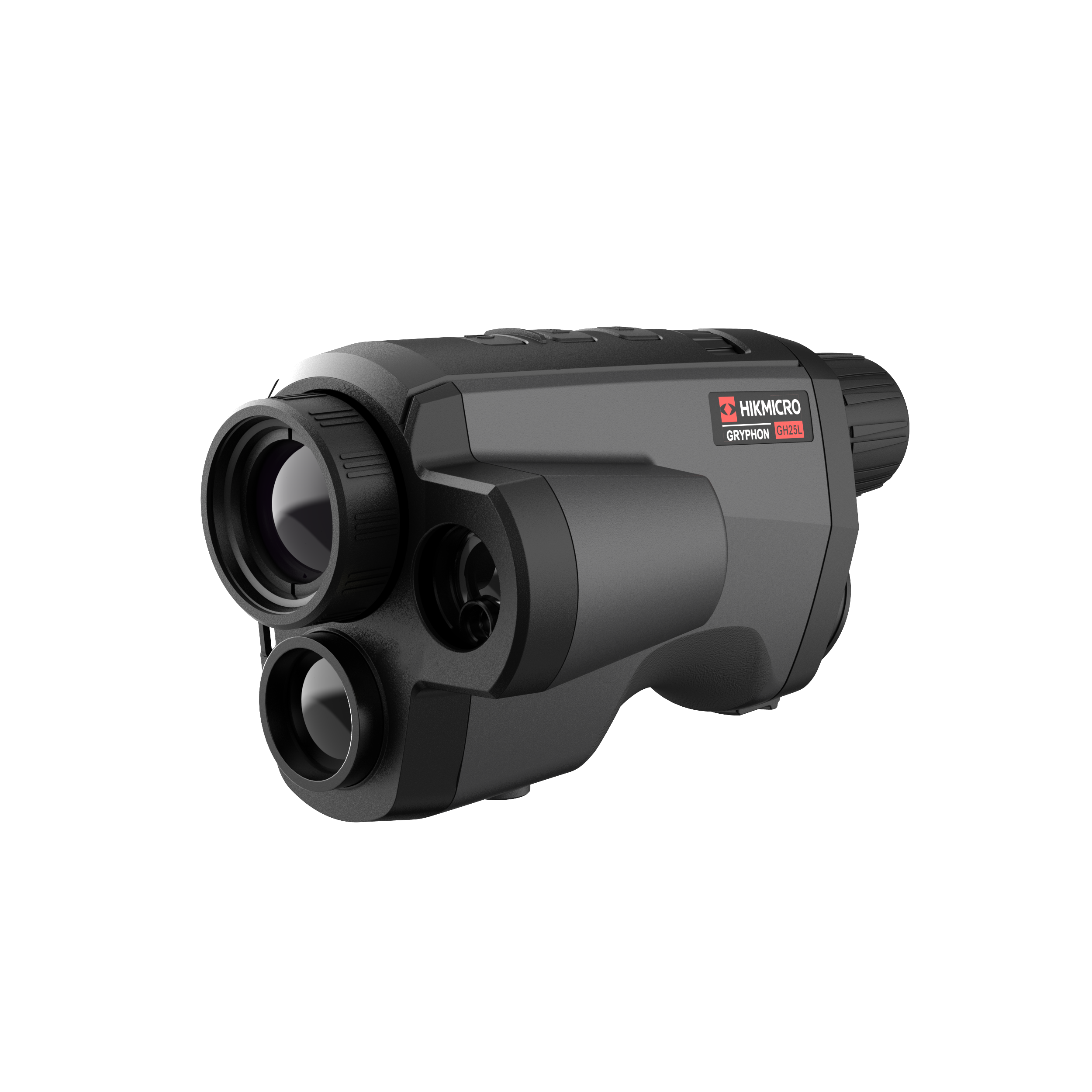

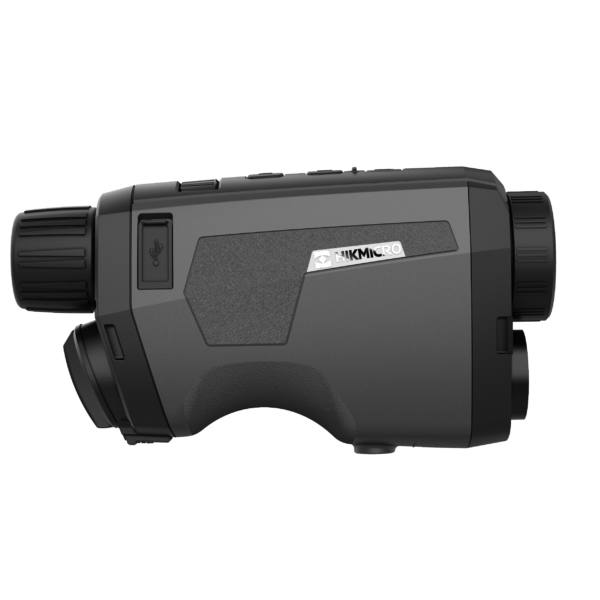

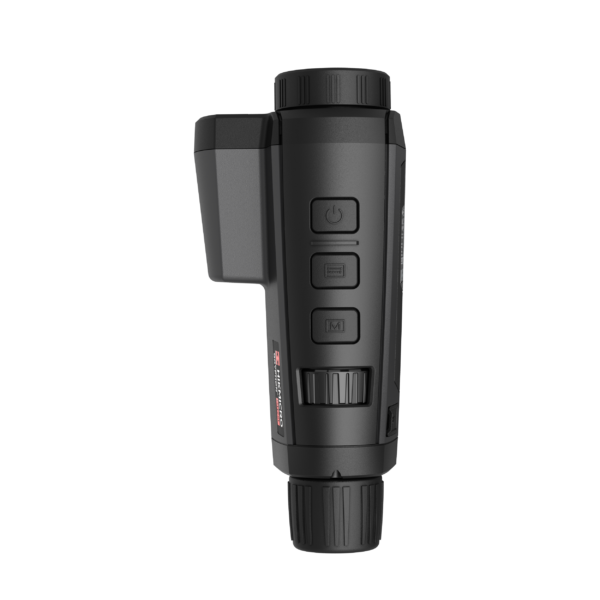

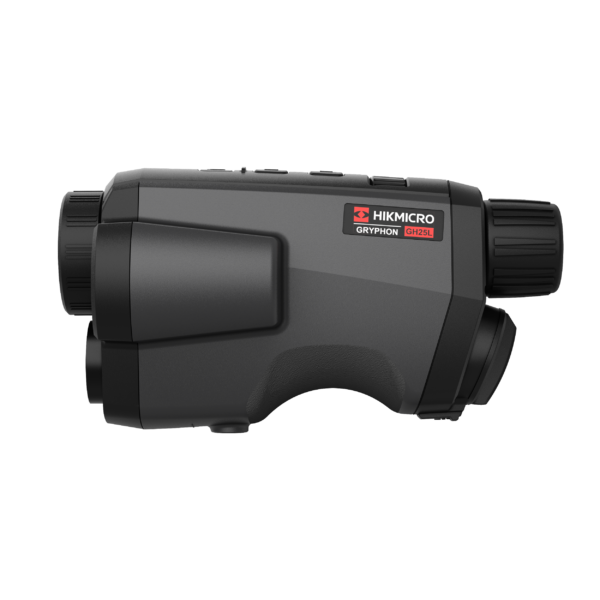

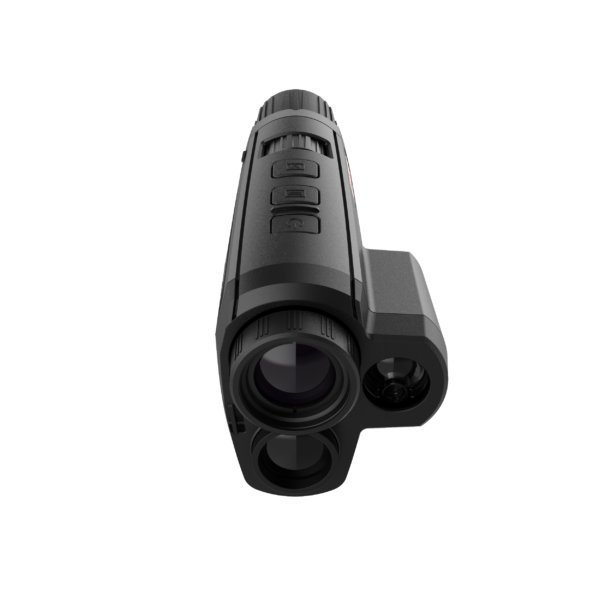

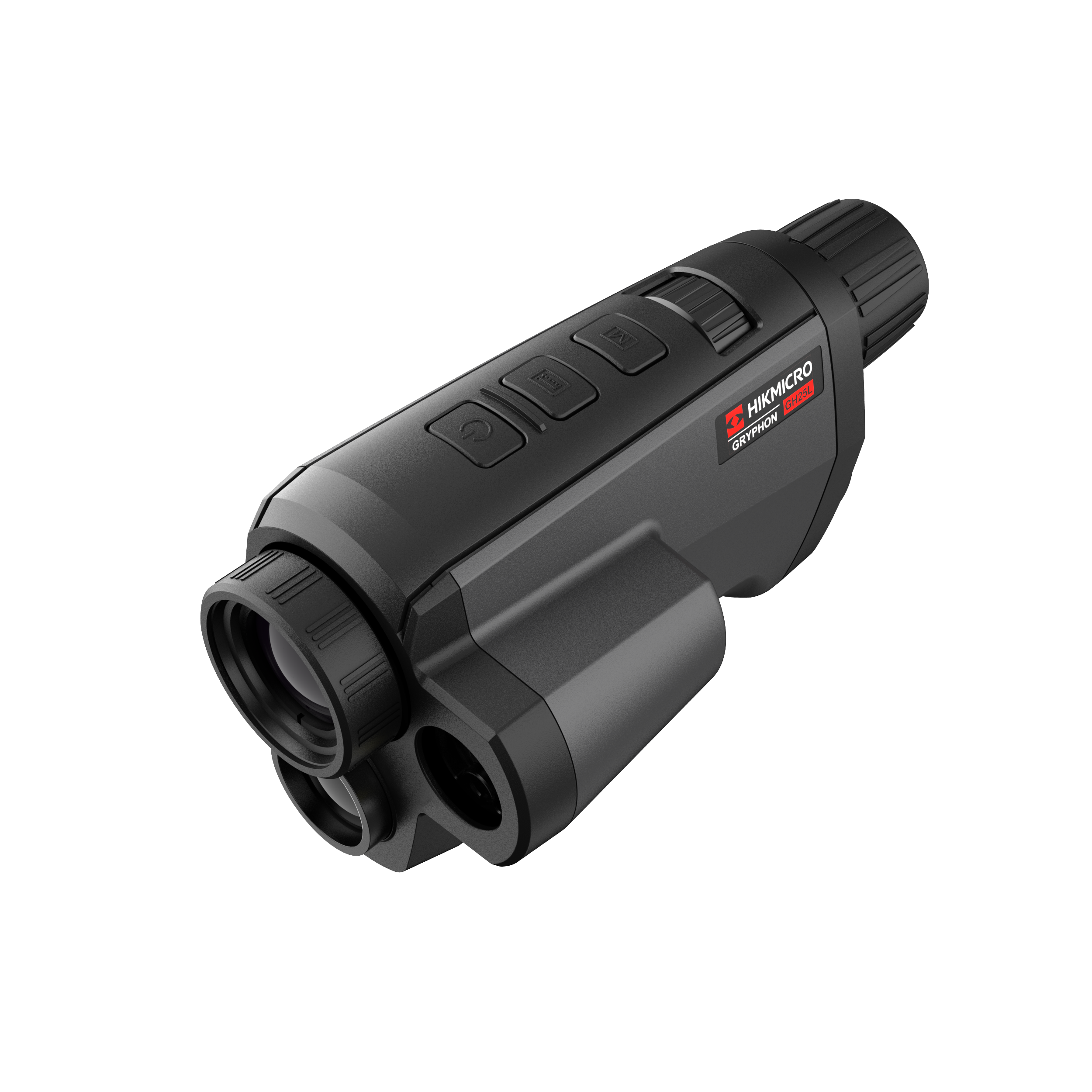

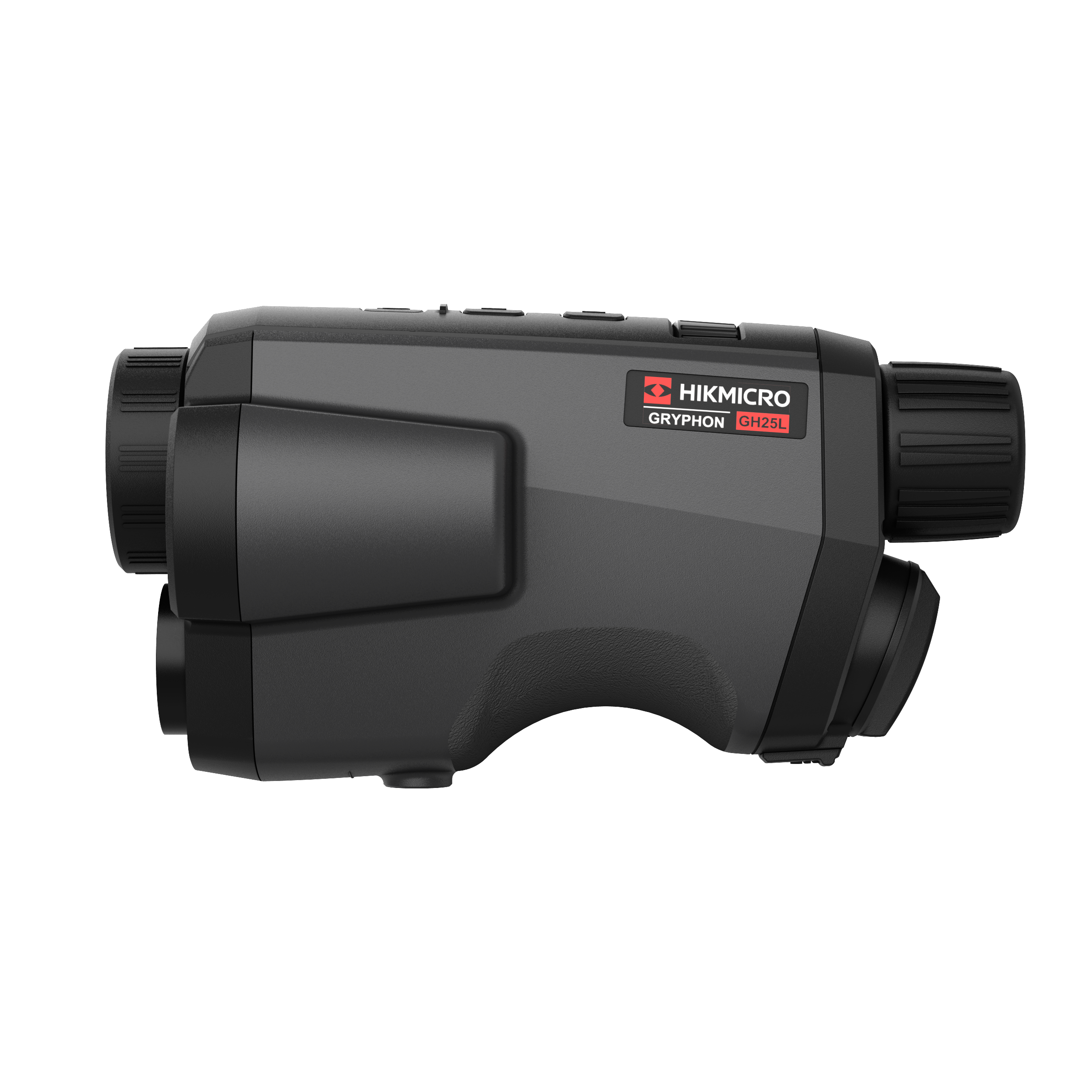

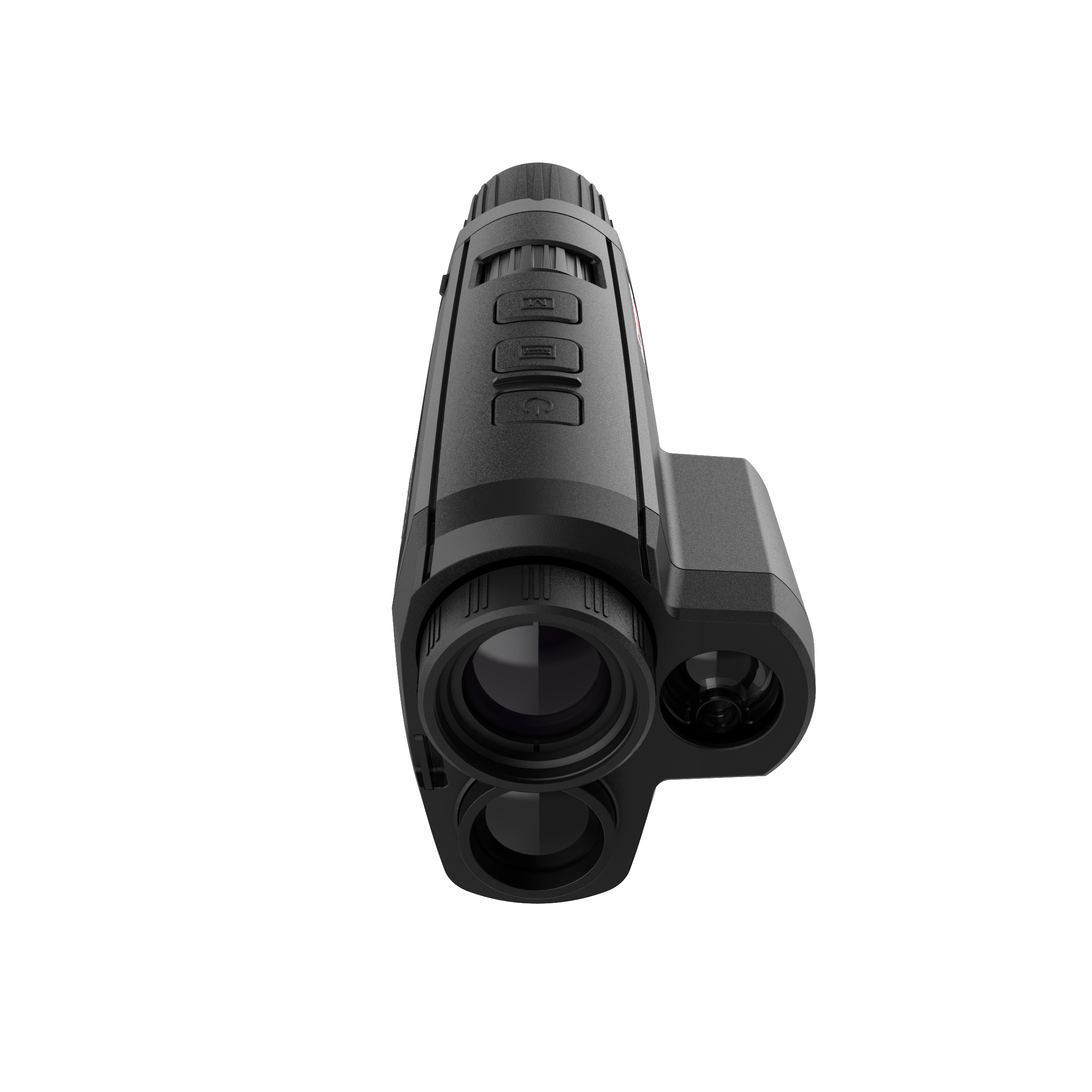

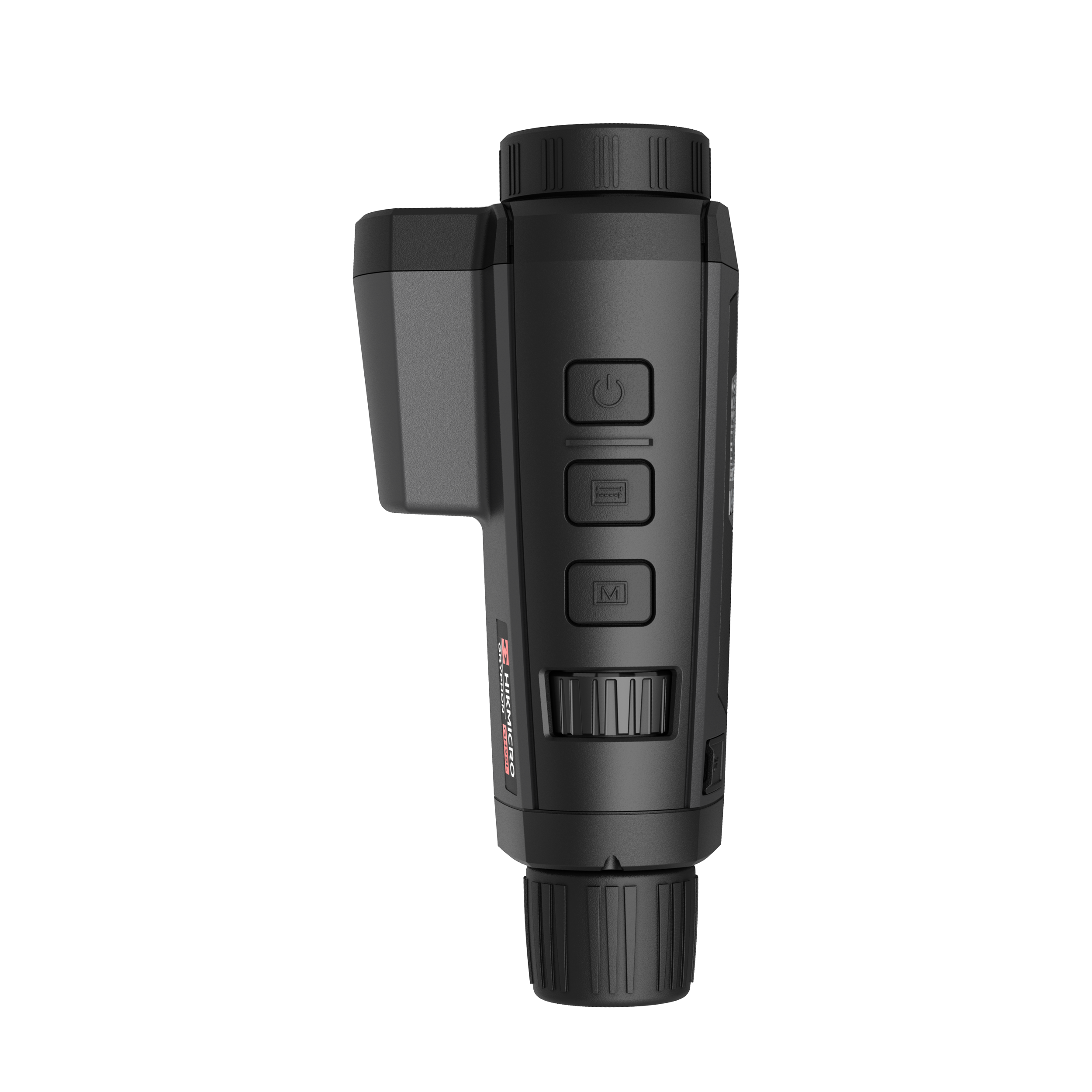

The HIKMICRO GRYPHON GQ35L handheld thermal monocular camera is equipped with a 640×512 infrared detector, a 1920×1080 low-light optical detector, and a 1024×768 OLED display. It supports surveillance, Wi-Fi hotspot, hot tracking, dual spectrum image fusion and other functions. The monocular is mainly used for patrolling, law enforcement, search and rescue, anti-narcotics, anti-smuggling, tracking and arresting, hiking and traveling, etc.



Tootekood: GQ35L Kategooria:

Thermal data

  • 640×512 resolution, high sensitivity detector, contract adjustment
  • 3D DNR
  • 25mm lens

Optics

  • Low light level detector
  • 1920×1080 resolution

Display

  • 0.39 inch OLED display
  • 1024×768 resolution
  • Thermal, optical and fusion modes

Battery

  • Built-in rechargeable lithium battery
  • 4.5 hours of continuous operation with CVBS and Wi-Fi hotspot off (@25°C)

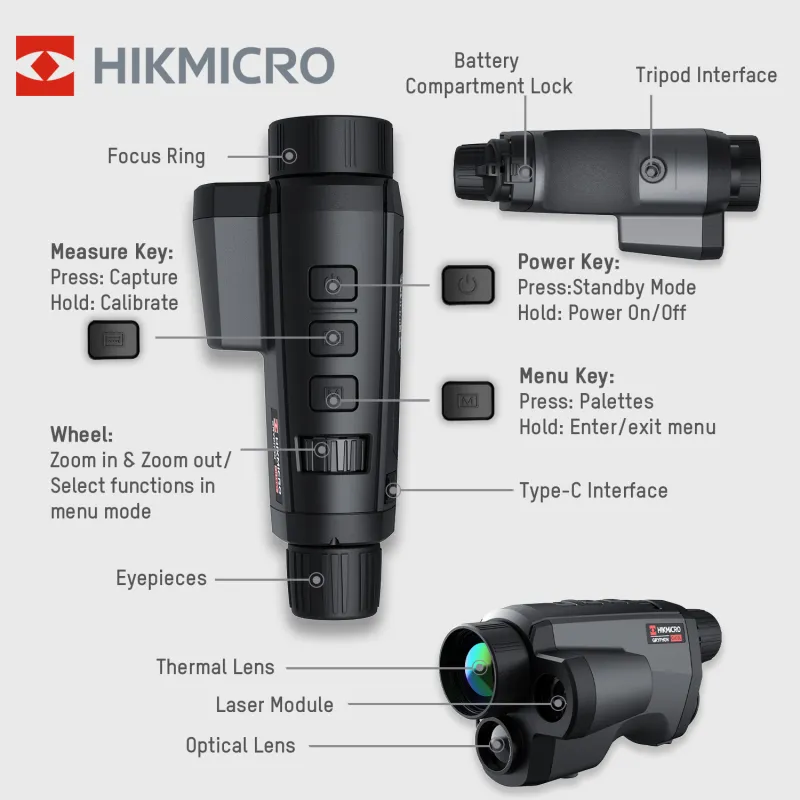

Functions

  • Wi-Fi hotspot
  • Built-in EMMC v5.1 interface with large memory (16GB), support image snapshot and video
  • Recording
  • Digital zoom
  • Type C interface
  • Control button
    Specification
    Thermal Module
    Image Sensor VOx Uncooled Focal Plane Arrays
    Max. Resolution 640×512
    Frame Rate 50 Hz
    Pixel Interval 12 μm
    Response Waveband 8 μm to 14 μm
    NET <35 mK (@25°C, F# = 1.0)
    Lens (Focal Length) 35 mm
    Detection Range 1800 m
    Focus Fashion Manual
    Field of View 10.97° × 8.82° (H × W)
    Min. Focusing Distance 3 m
    Aperture F1.0
    Magnification 2.0
    Digital Zoom 1×, 2×, 4×, 8×
    Optical Module
    Image Sensor 1/2” Progressive Scan CMOS
    Focal Length 22 mm
    Wavelength 400 nm to 1000 nm
    Max. Resolution 1920×1080
    Min. Illumination 0.001 Lux @ F1.0
    Image Display
    Frame Frequency 50 Hz
    Display 0.39 inch, OLED, 1024 × 768
    Image Mode White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
    FFC (Flat Field Correction) Mode Auto, Manual, External Correction
    Smart Function
    Hotspot Yes
    Hot Track Yes
    Distance Measurement Yes
    Standby Mode Yes
    System
    Record Video Yes
    Capture Snapshot Yes
    Built-in Memory 16 GB
    Power Supply
    Battery Type One 18650 battery
    Power Removable Battery
    Battery Operating Time 4.5 hours
    General
    Protection Level IP67
    Dimension 87.2 mm × 73.3 mm × 167.8 mm (3.43 inch × 2.88 inch × 6.61 inch)
    Weight 510 years
    Working Temperature -30 to 55°C
    Eye-Relief 19.5 mm
    Laser Rangefinder
    Safety Class for Laser Class 1
    Wavelength 905 nm
    Max. Measuring Range 600 m
    Measurement Accuracy ± 1 m
