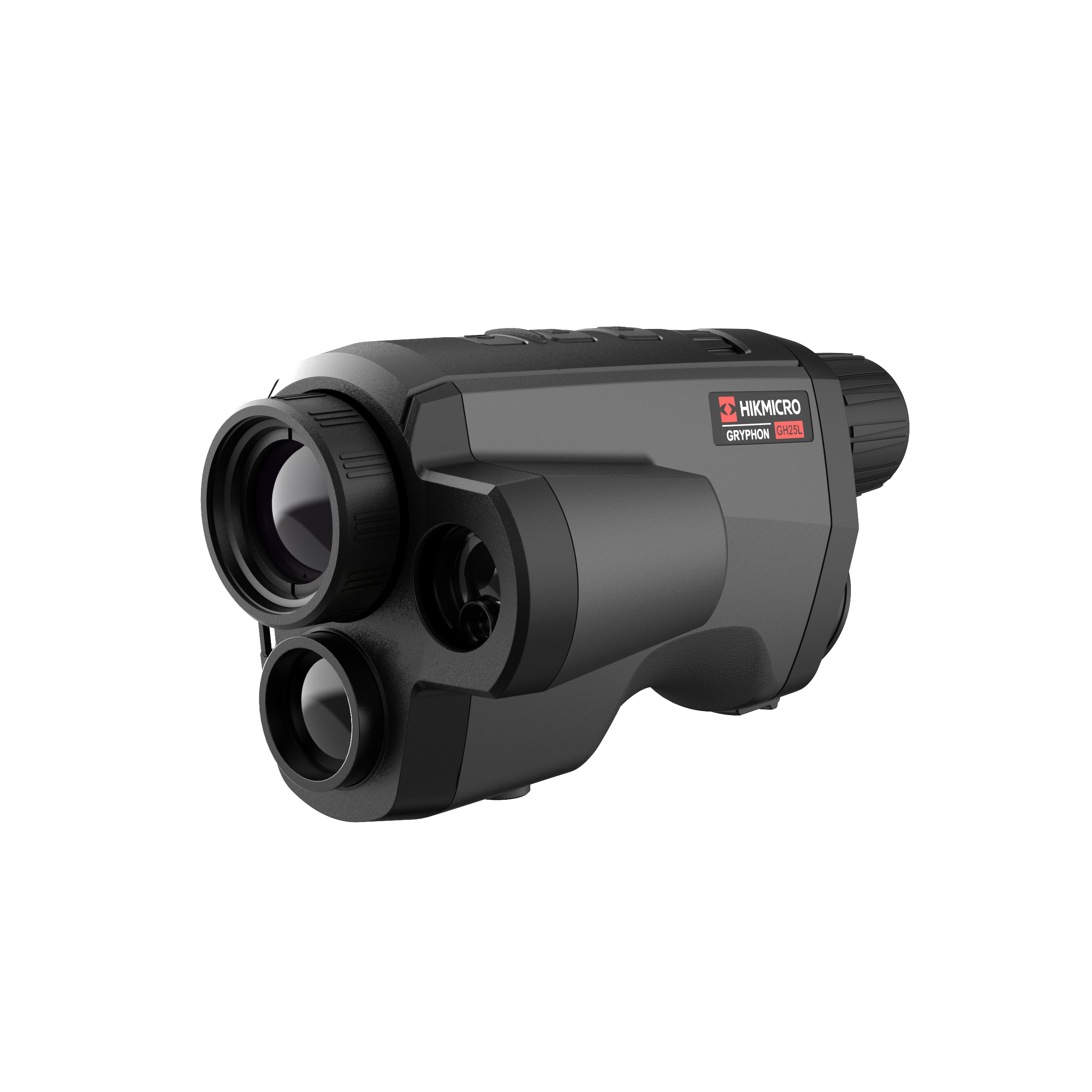

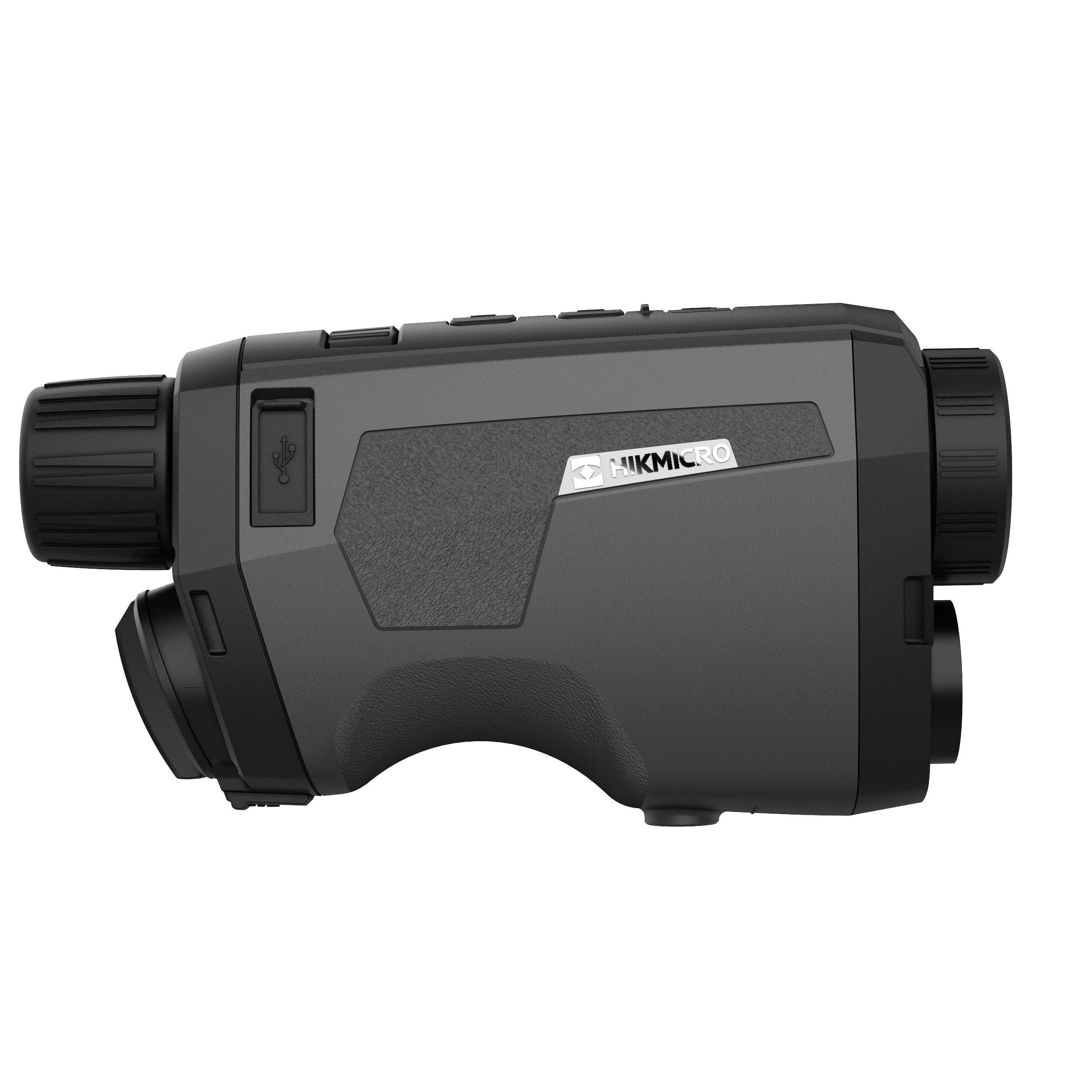

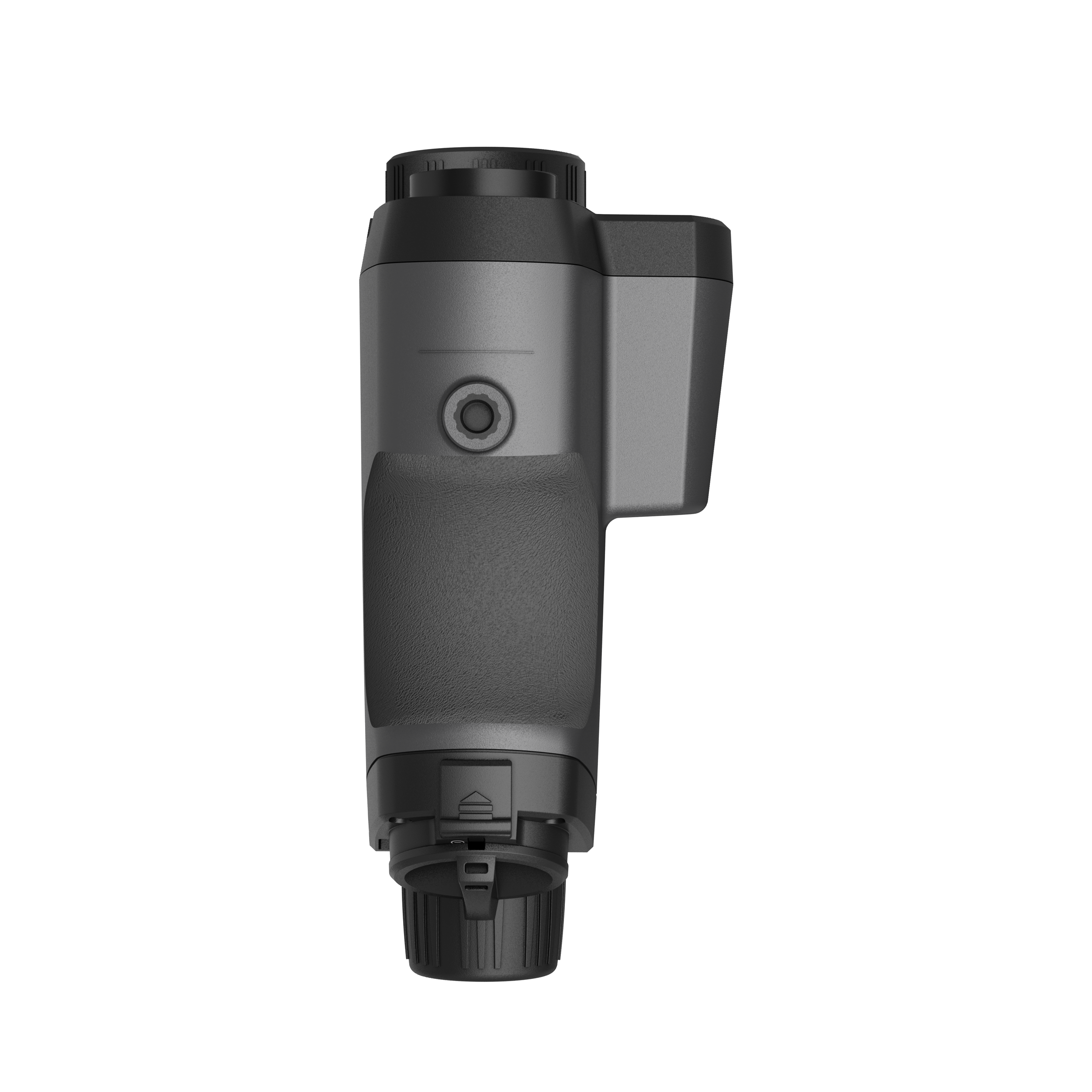

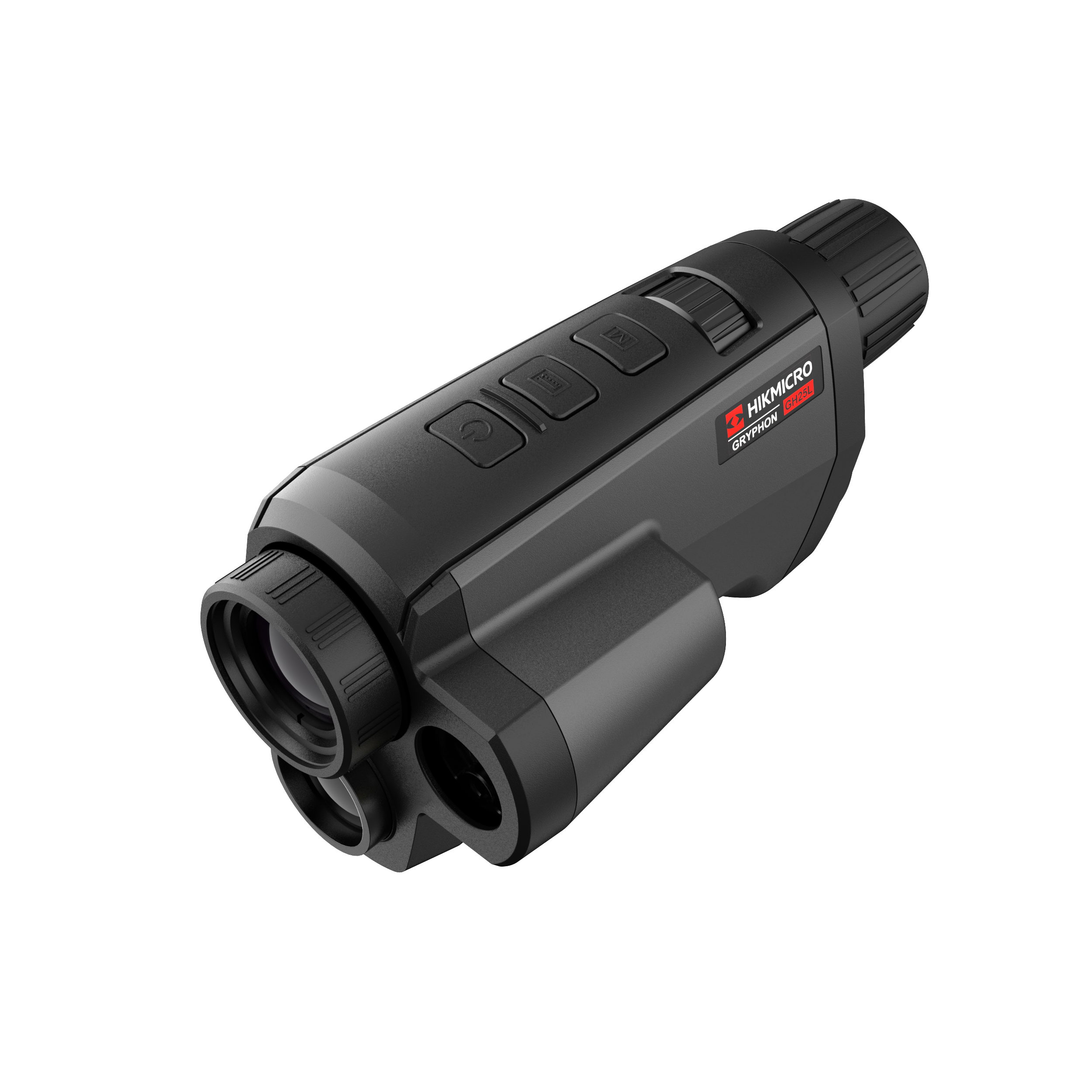

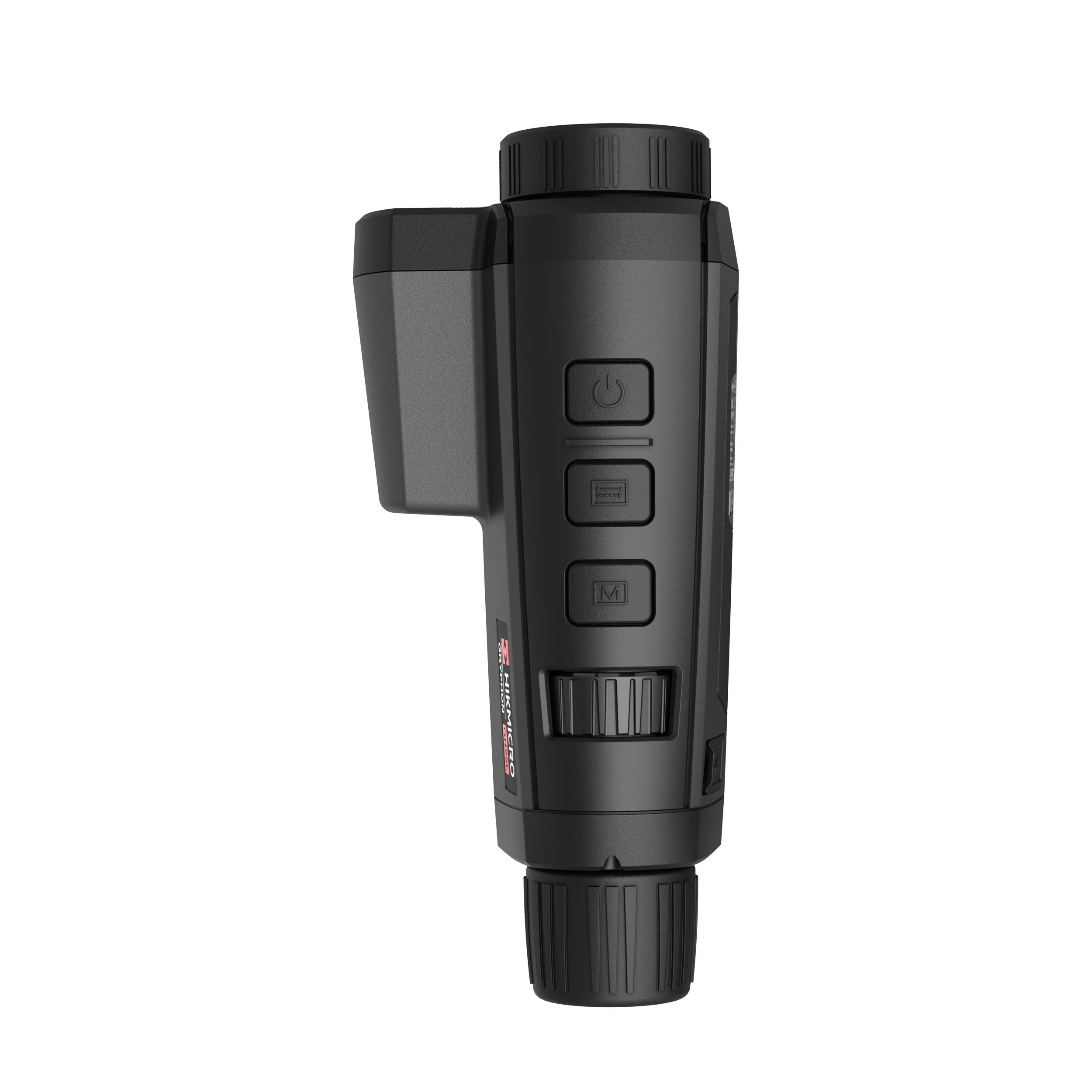

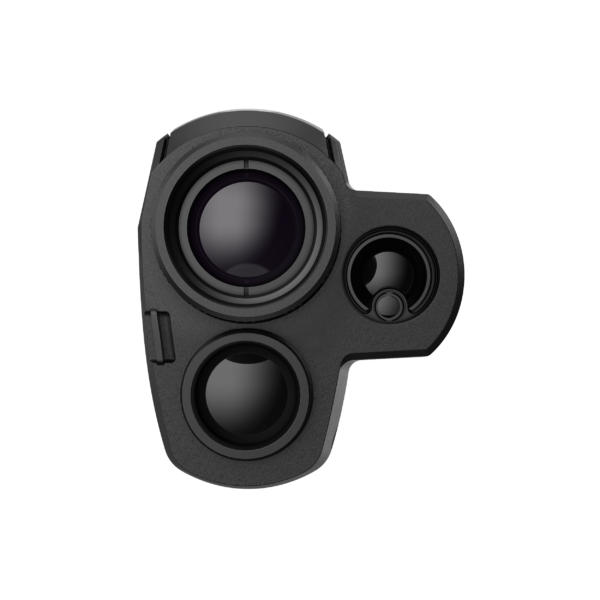

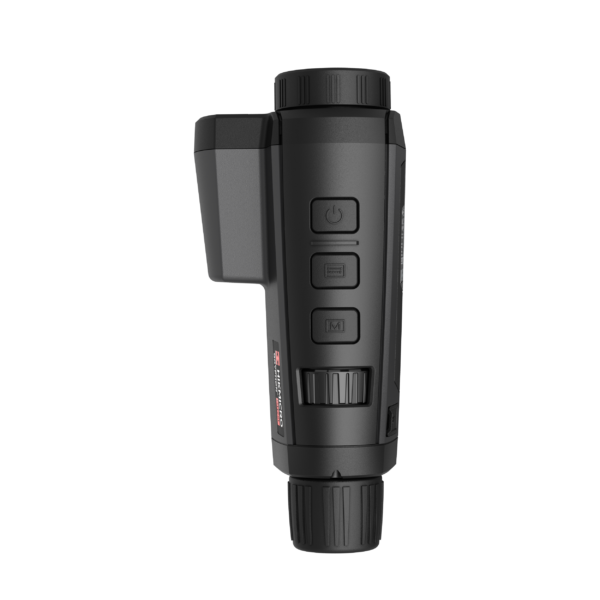

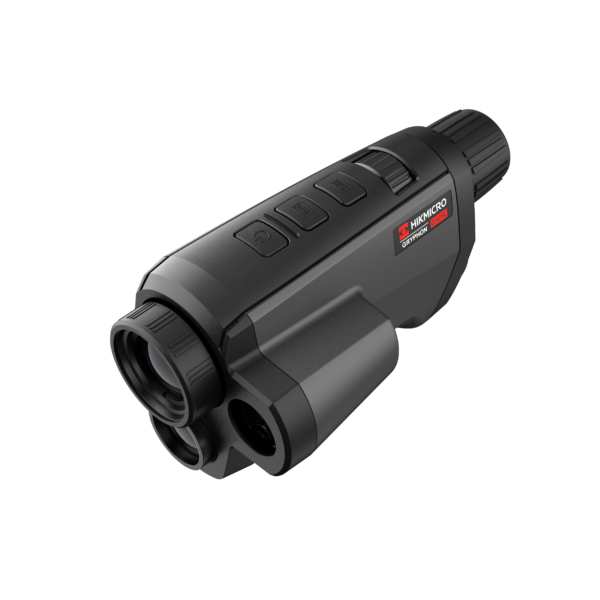

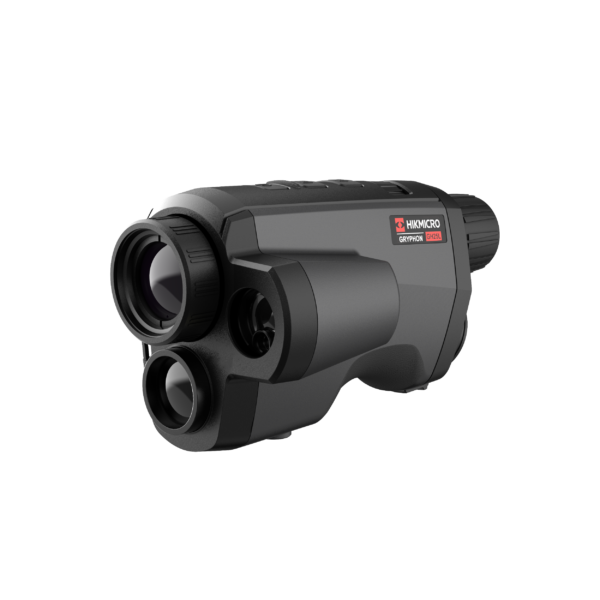

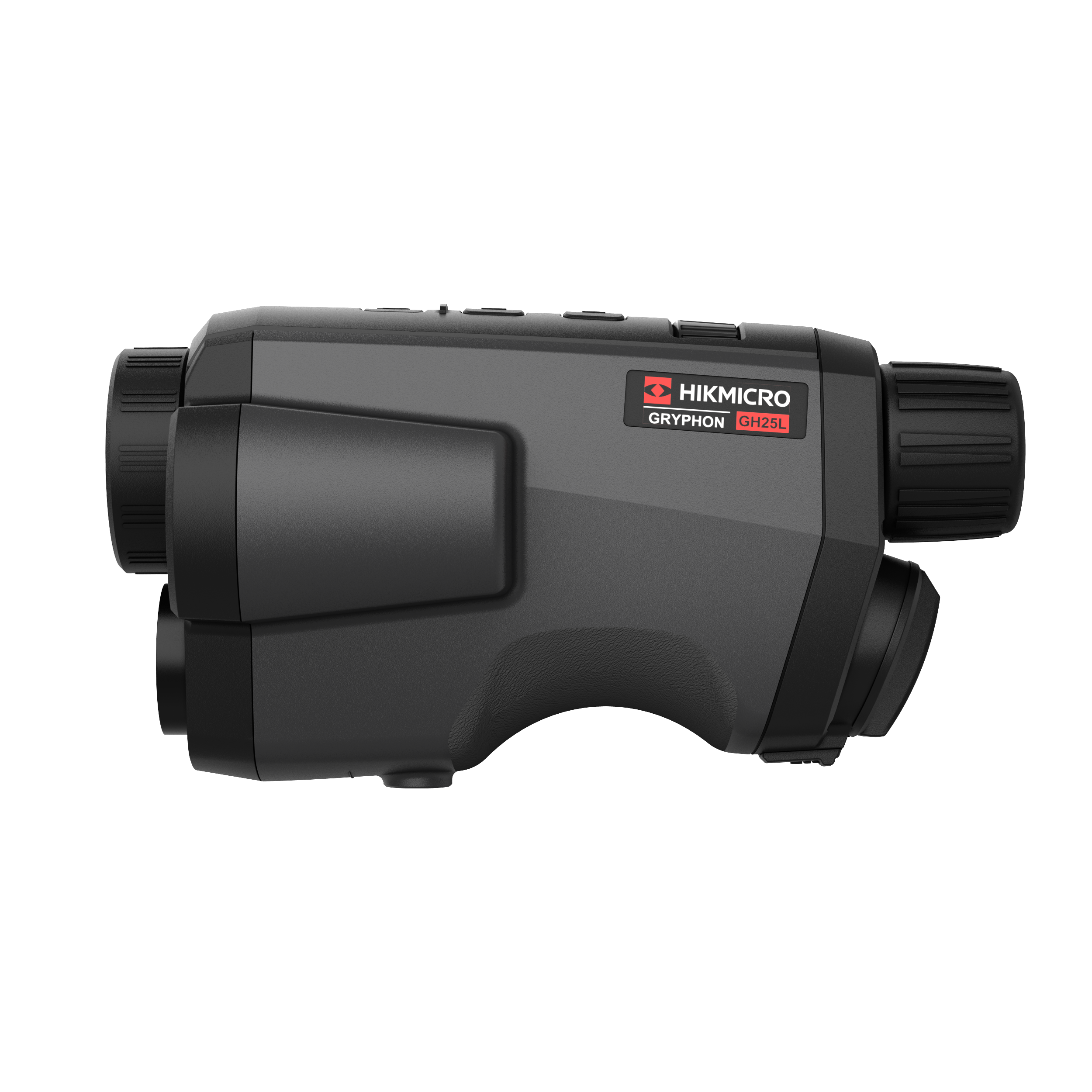

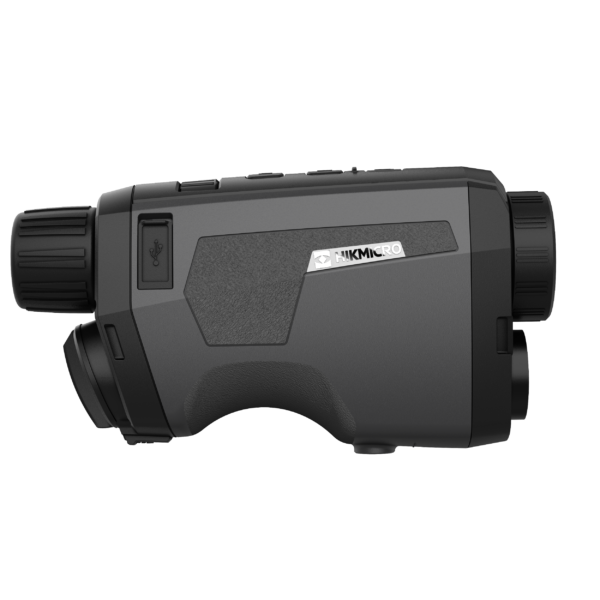

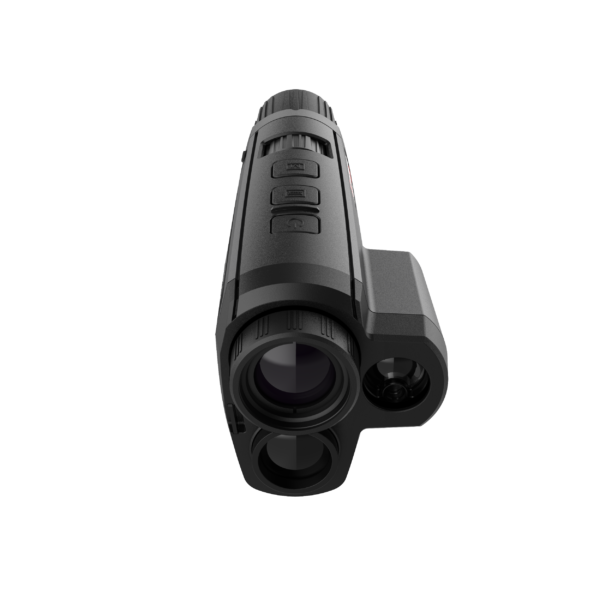

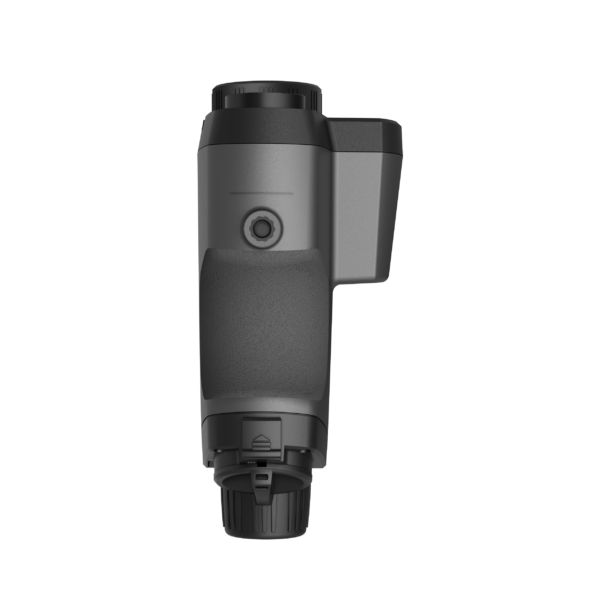

The HIKMICRO GRYPHON GQ35L handheld thermal monocular camera is equipped with a 640×512 infrared detector, a 1920×1080 low-light optical detector, and a 1024×768 OLED display. It supports surveillance, Wi-Fi hotspot, hot tracking, dual spectrum image fusion and other functions. The monocular is mainly used for patrolling, law enforcement, search and rescue, anti-narcotics, anti-smuggling, tracking and arresting, hiking and traveling, etc.



Thermal data

  • 640×512 resolution, high sensitivity detector, contract adjustment
  • 3D DNR
  • 25mm lens


  • Low light level detector
  • 1920×1080 resolution


  • 0.39 inch OLED display
  • 1024×768 resolution
  • Thermal, optical and fusion modes


  • Built-in rechargeable lithium battery
  • 4.5 hours of continuous operation with CVBS and Wi-Fi hotspot off (@25°C)


  • Wi-Fi hotspot
  • Built-in EMMC v5.1 interface with large memory (16GB), support image snapshot and video
  • Recording
  • Digital zoom
  • Type C interface
  • Control button
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640×512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD <35 mK (@25 °C, F# = 1.2)
Lens (Focal Length) 50 mm
Detection Range 2600 m
Focus Mode Manual
Field of View 8.78° × 7.03° (H × V)
Min. Focusing Distance 5 m
Aperture F1.2
Magnification 2.9
Digital Zoom 1×, 2×, 4×, 8×
Optical Module
Image Sensor 1/2” Progressive Scan CMOS
Focal Length 22 mm
Wavelength 400 nm to 1000 nm
Max. Resolution 1920×1080
Min. Illumination 0.001 Lux@F1.0
Image Display
Frame Frequency 50 Hz
Display 0.39 inch, OLED, 1024 × 768
Image Mode White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Smart Function
Hot Spot Yes
Hot Track Yes
Distance Measurement Yes
Standby Mode Yes
Record Video Yes
Capture Snapshot Yes
Built-in Memory 16 GB
Power Supply
Battery Type One 18650 battery
Battery Operating Time 4.5 hours
Power Removable Battery
Protection Level IP67
Dimension 87.2 mm × 73.3 mm × 183.6 mm
Weight 548 g
Working Temperature -30 to 55 °C
Eye-Relief 19.5 mm
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 600 m
Measurement Accuracy ±1 m
