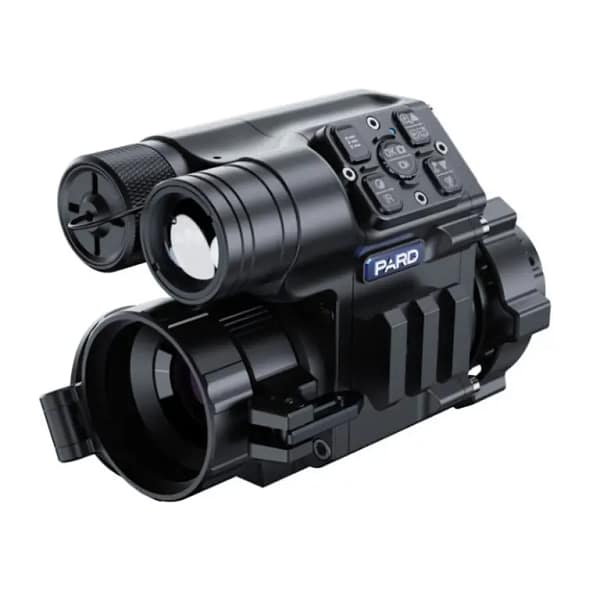

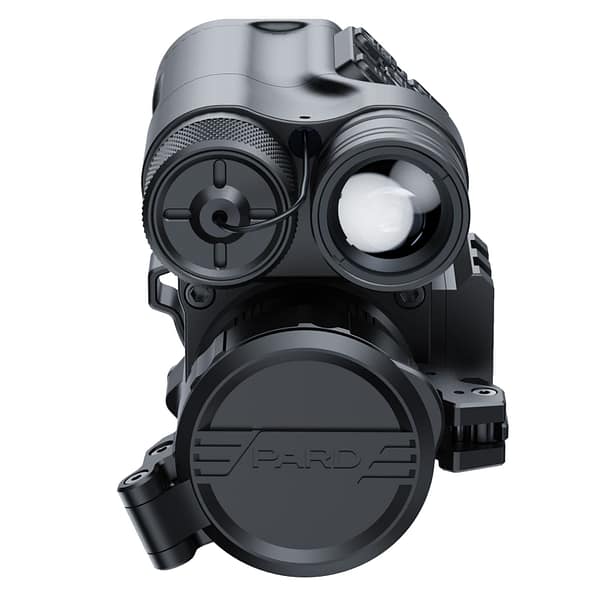

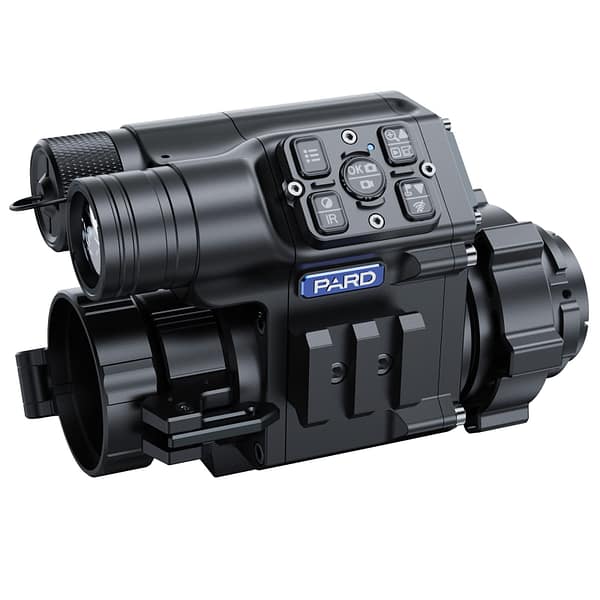

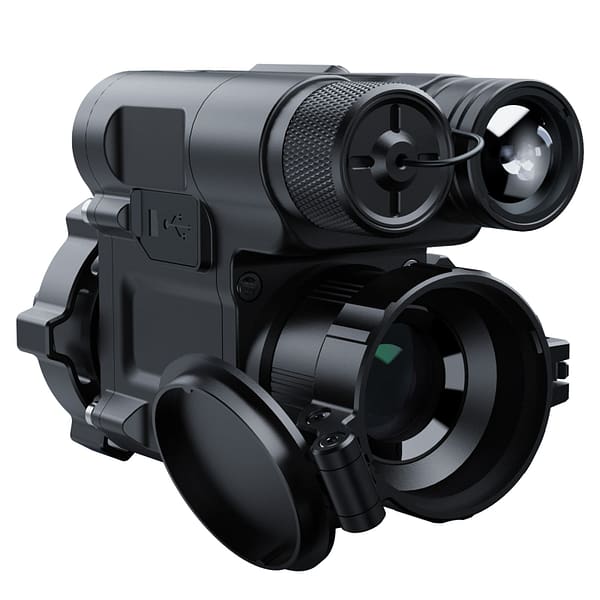

| Model | FD1/FD1-LRF | ||
| Classification | Digital Night Vision Front Clip-on | ||
| Sensor | |||
| Type | CMOS | ||
| Resolution(px) | 1920*1080 | ||
| Pixel Size(µm) | 2.9 | ||
| Frame Rate(Hz) | Color:60/B&W:30 | ||
| Image Engine | PARD VLEA | ||
| Optics | |||
| Purpose | RifleScope/Monocular | Clip-on | |
| Objective Lens(mm) | 30 | ||
| Optical Magnification(x) | 3.5 | 1 | |
| Digital Zoom(x) | 2 | N/A | |
| Field of view (HxV) | Horizontal | 7.9 | |
| Vertical | 5.9 | ||
| Diagonal | 9.9 | ||
| Eye Relief(mm) | 30 | N/A | |
| Diopter Adjustment | – 5D~+5D | N/A | |
| Display | |||
| Purpose | RifleScope/Monocular | Clip-on | |
| Type | OLED | ||
| Resolution(px) | 1440*1080 | ||
| Reticle Style | 6 | ||
| Reticle Color | Red/White/Yellow/Green | N/A | |
| Image Mode | Color /Mono | ||
| Photo / Video | |||
| Photo Resolution(px) | 2592*1944 | ||
| Photo Format | .JPG | ||
| Video Resolution(px) | TBD | ||
| Video Format | .mp4 | ||
| Storage | TF card(128 GB,Max) | ||
| Main function | |||
| Purpose | RifleScope/Monocular | Clip-on | |
| LRF Detection Range | 1000m/1200yd | ||
| Ballistic Calculator | Yes | N/A | |
| PIP | Yes | N/A | |
| Self-motivated Recording | Yes | ||
| Loop Recording | Yes | ||
| Microphone | Yes | ||
| IR Wavelength(nm) | 850/940 | ||
| IR Illuminating Level | 3 Levels | ||
| Connections | |||
| USB Tpye-C | Yes | ||
| WiFi | Yes | ||
| Supported Apps | PardVision | ||
| Power Supply | |||
| Battery Type | Lithium Ion 18650 | ||
| Output Voltage(V) | 3.7 | ||
| Operating Time(h) | ≤8 | ||
| External Power Supply | Type-C | ||
| Environmental characteristic | |||
| Protective Class | IP67 | ||
| Operating Temp | –4℉~122℉/-20℃~50℃ | ||
| Recoil Resistance(J) | 6000 | ||
| Material | |||
| Housing | Aluminum Alloy | ||
