Termokaamera FALCON FH35 HIKMICRO

2,056.00€

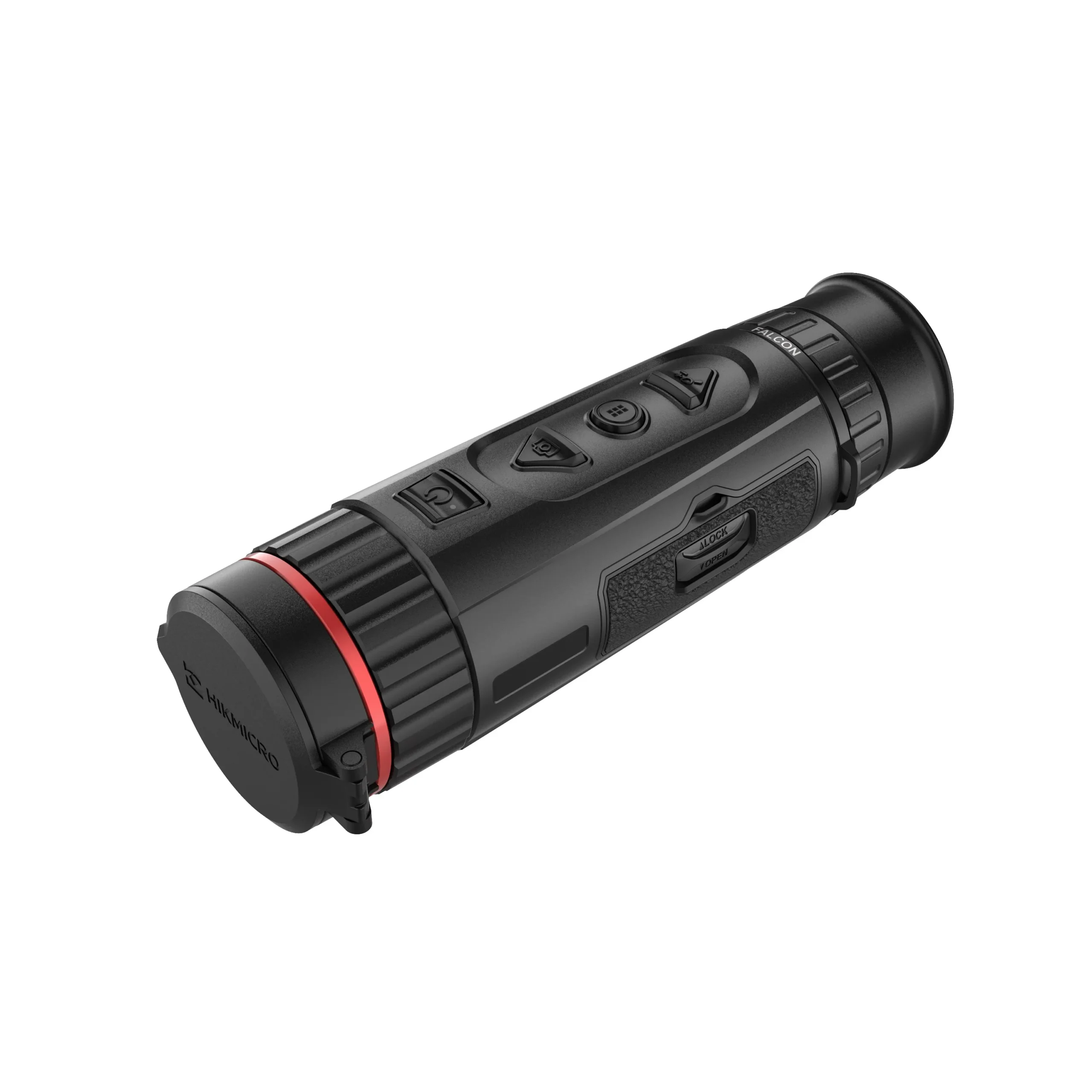

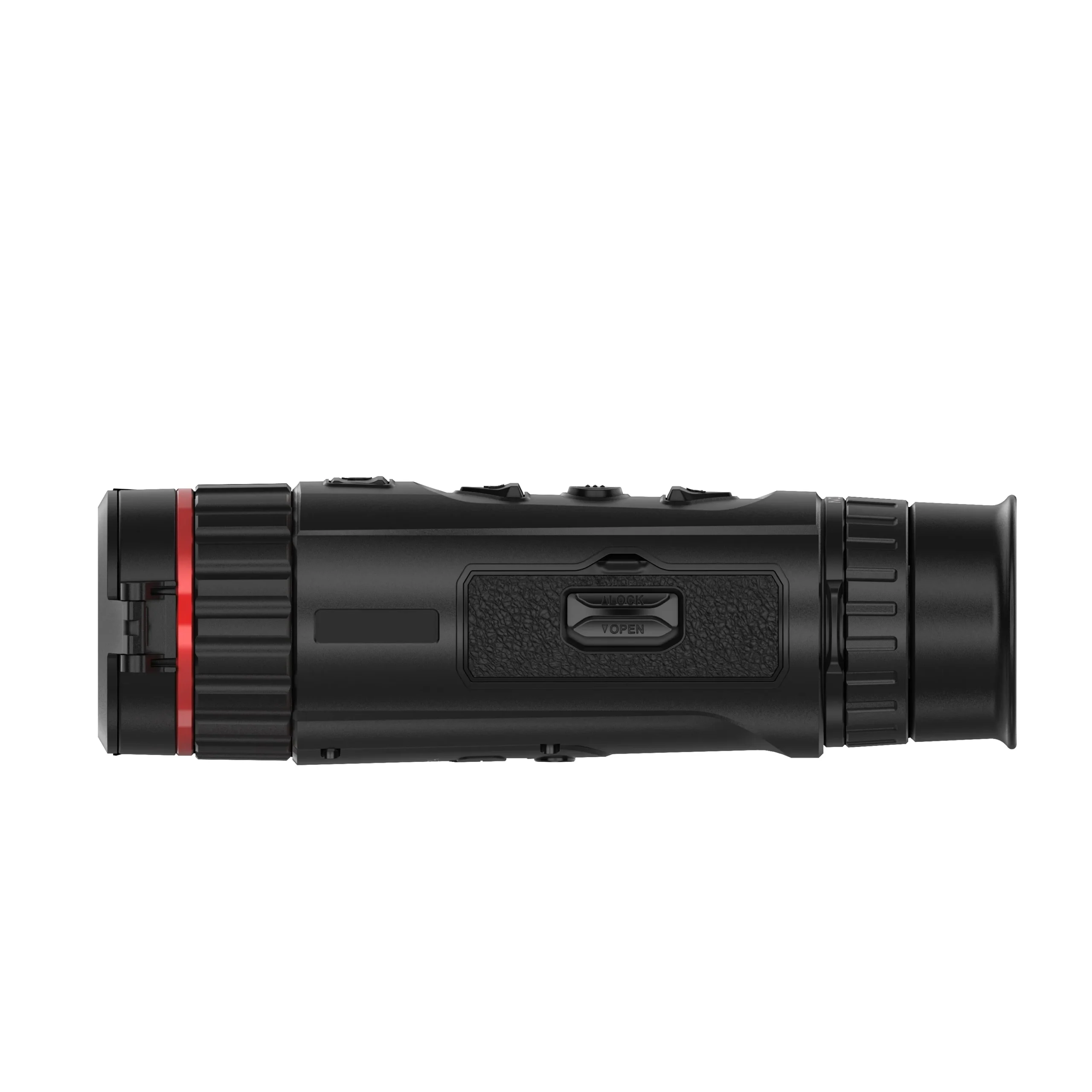

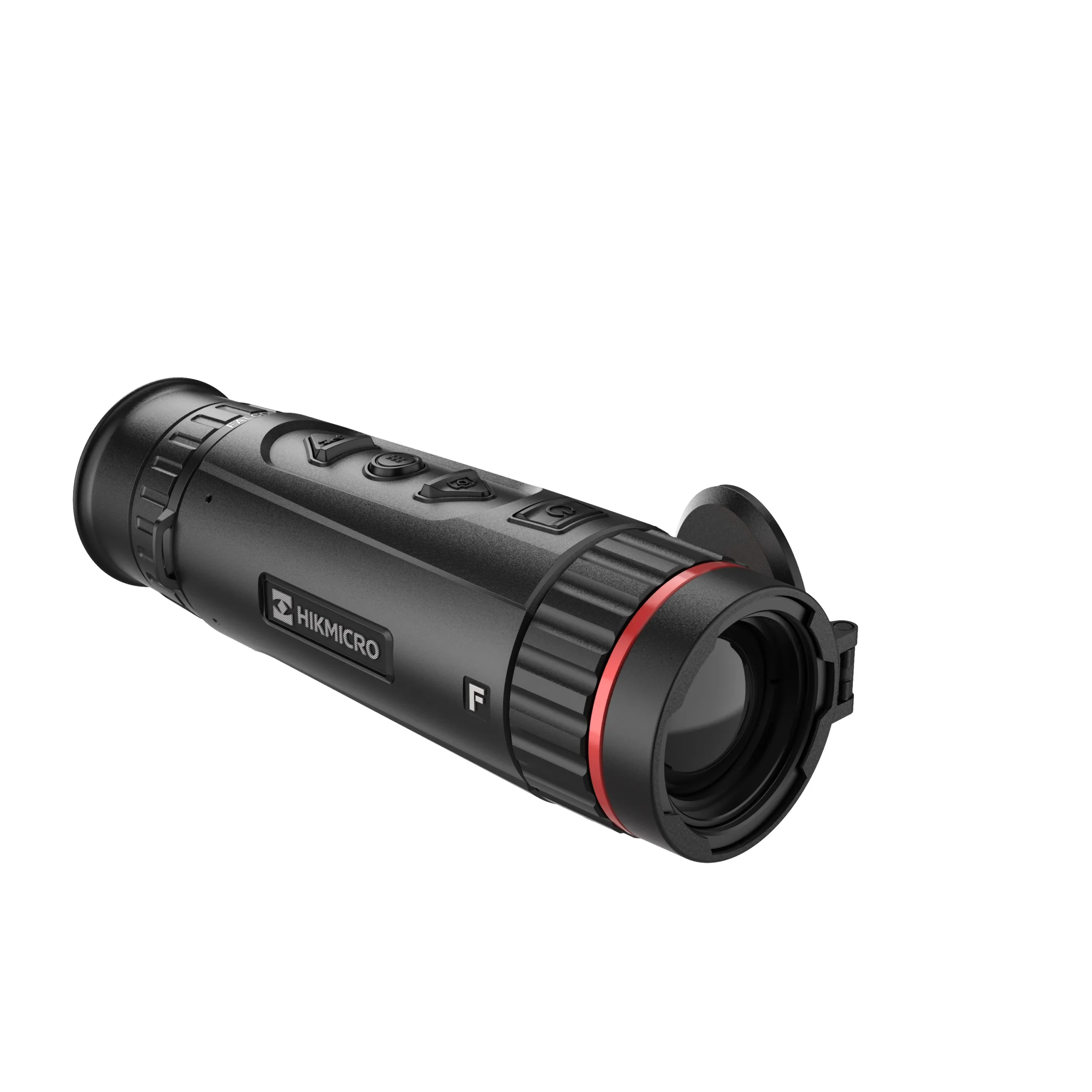

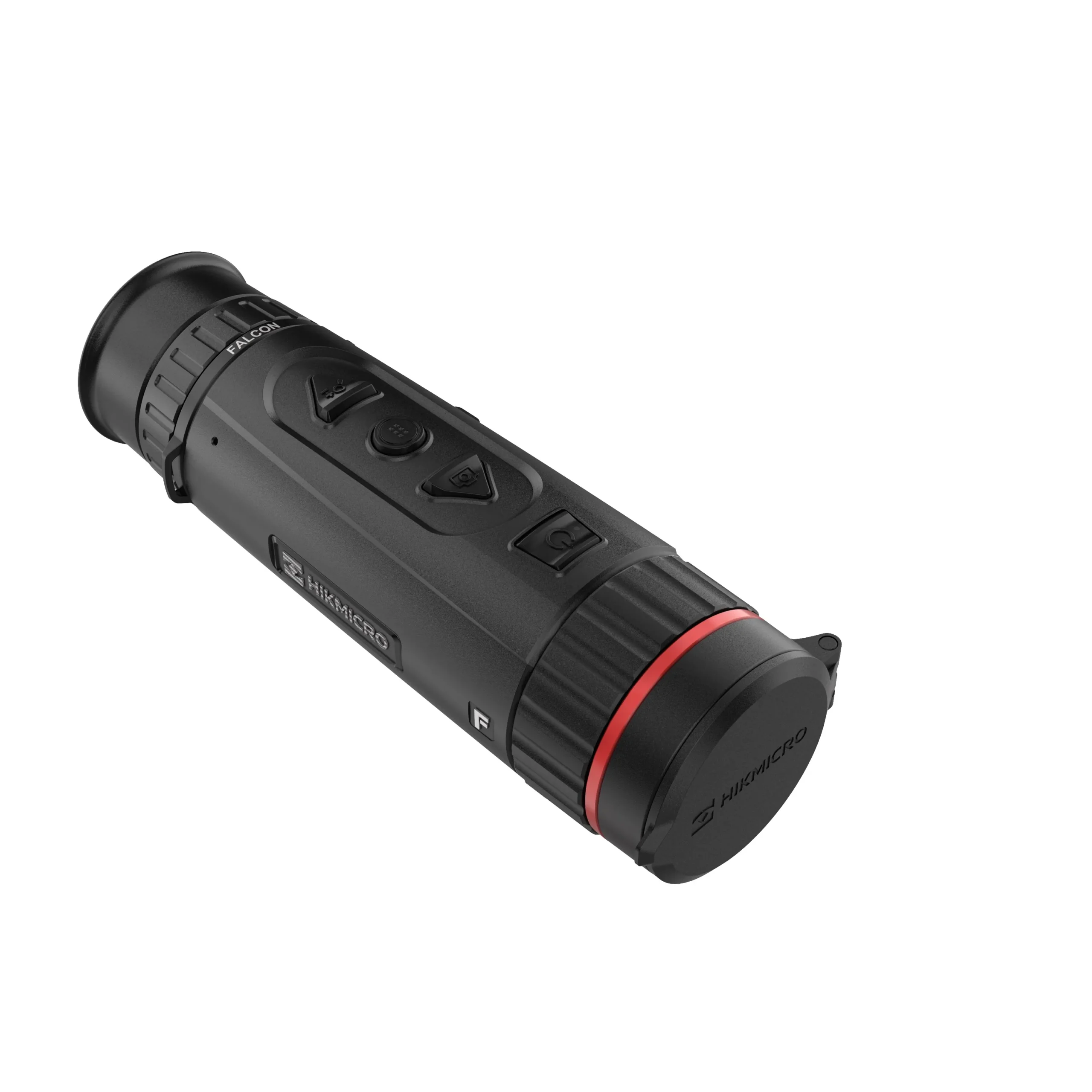

The HIKMICRO FALCON FH35 is a handheld thermal monocular camera equipped with a 384×288 infrared detector and a 1024×768 OLED display. It supports surveillance, mobile hotspot and its other functions. A built-in high-sensitivity thermal detector ensures a clear view even in total darkness. The monocular is mainly used for purposes such as search and rescue, hiking, travel and hunting, etc.



Tootekood: FH35 Kategooria:
  • 384 × 288 resolution with a 12 μm sensor
  • High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
  • Replaceable and rechargeable lithium-ion battery Up to 7 hours of continuous operation
  • Leading thermal image processing technology: Image Pro 1024 × 768 resolutions
  • 0.39 inch OLED display
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Resolution 384×288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NET Less than 20 mK (@25°C), F# = 1.0
Focal Length 35 mm
Aperture F1.0
Min. Focusing Distance 3.5 m
Digital Zoom 1×, 2×, 4×, 8×
Optical Magnification 3.03
Field of View (H × V), Degrees/m @100 m 7.53° × 5.65°/13.2 m × 9.9 m
Detection Range 1800 m
Image display
Monitor 0.39 inch, OLED, 1024 × 768
Pallets Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
system
Storage Built-in memory module (64 GB)
Record Video Yes
Capture Snapshot Yes
Standby Mode Yes
Hotspot Yes
Hot Track Yes
Power Supply
Power 5V, 1.5W
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time 7 hours continuous running with CVBS and hotspot function off (@25°C)
General
Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or less
Protection Level IP67
Dimension 190.3 mm × 58.3 mm × 65.2 mm (7.49″ × 2.29″ × 2.57″)
Weight 505 g (1.11 lb)
